AZ150 Galvalume Aluzinc Coated Steel Sheet
AZ150 Galvalume Aluzinc Coated Steel Sheet
Feature
-

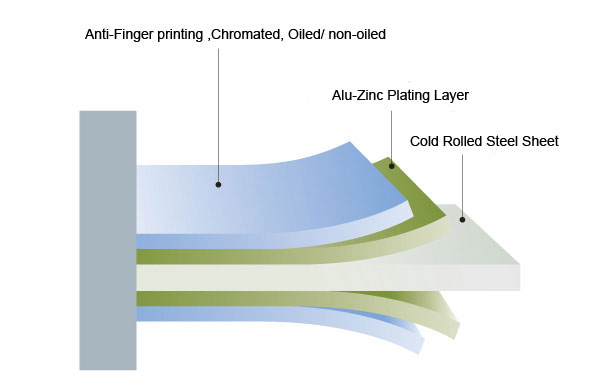

Galvalume steel sheet is composed of aluminum-zinc alloy structure, which is composed of 55% aluminum, 43.4% zinc and 1.6% silicon solidified at 600℃. It is an important alloy material which is often used in our daily life.
1.Standard: AISI, ASTM, BS, DIN, GB, JIS
2.Grade: G550, DX51d, etc. all according to the customer's request
3.Standard: JIS3321/ASTM A792M
4.Thickness: 0.16mm-2.5mm, all available
5.Width: customized
6. Length: according to per customer's requirement
7.Alu-zinc coating: AZ150

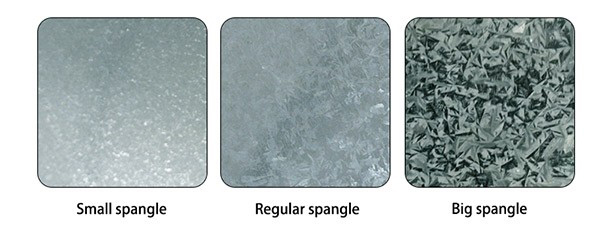

8.Spangle: regular spangle, small spangle, big spangle
9. Surface treatment: Chemical treatment, oil, dry, Chemical treatment and oil, anti-finger print.
| Steel Type | AS1397-2001 |
EN 10215-1995 |
ASTM A792M-02 |
JISG 3312:1998 |
ISO 9354-2001 |
|
Steel for Cold Forming and Deep Drawing Application |
G2+AZ |
DX51D+AZ |
CS type B, type C |
SGLCC |
1 |
|
G3+AZ |
DX52D+AZ |
DS |
SGLCD |
2 |
|
|
Structural Steel |
G250+AZ |
S250GD+AZ |
255 |
- |
250 |
| G300+AZ |
- |
- |
- |
- |
|
| G350+AZ |
S350GD+AZ |
345 Class1 |
SGLC490 |
350 | |
| G550+AZ |
S550GD+AZ |
550 |
SGLC570 |
550 |
| Surface Treatment |
Feature |
| Chemical Treatment |
minimize the chance of humid-storage staining forms a dark gray surface discoloration on the surface |
|
retain the bright metallic luster for a long period |
|
| Oil |
minimize the tendency for humid-storage stain |
|
Chemical Treatment and Oil |
The chemical treatment provides very good protection against humid-storage staining, while the oil provides lubricity for operations. |
| Dry |
must be transported and stored with special precautions to preserve low-humidity conditions. |
| Anti-finger print |
minimize the chance of humid-storage staining forms a dark gray surface discoloration on the surface |
The surface of the galvalume steel sheet is characterized by smooth, flat and gorgeous stars, and the primary color is silvery white. The special coating structure makes it have excellent corrosion resistance. The normal service life of galvalume steel sheet can reach 25 years, and it has good heat resistance and can be used in high temperature environment of 315℃; The adhesion between the coating and the paint film is good, and it has good process ability, and can be punched, cut, welded, etc. The surface conductivity is very good.
Galvalume steel sheet has many excellent characteristics: strong corrosion resistance, which is 3 times that of pure galvanized sheet; There are beautiful zinc flowers on the surface, which can be used as exterior panels of buildings.
*Galvalume Steel is composed of 55% aluminum, 43.5% zinc and 1.5% Silicon.
*Galvalume steel is formable, weldable and paintable.
*Galvalume steel has superior corrosion resistance in the most atmospheric conditions. This is achieved through the combination of the sacrificial protection of the zinc and the barrier protection of the aluminum.
*Galvalume Steel coating out-perform galvanized coating from 2-6 times than hot dip galvanized steel.

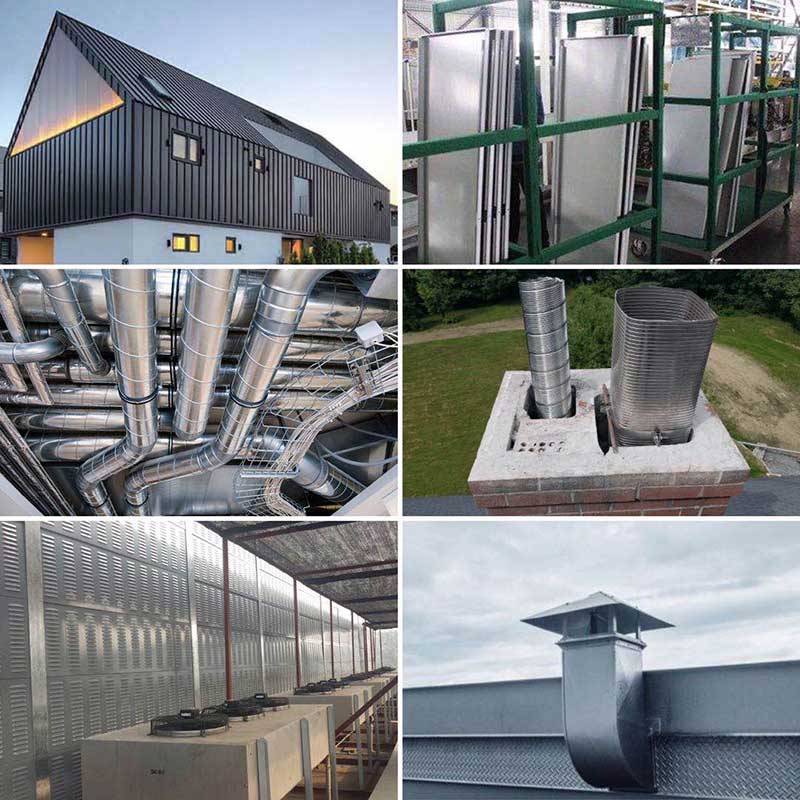

1.Buildings: roofs, walls, garages, soundproof walls, pipes and modular houses, etc.
2.Automobile: muffler, exhaust pipe, wiper accessories, fuel tank, truck box, etc.
3.Household appliances: refrigerator backboard, gas stove, air conditioner, electronic microwave oven, LCD frame, CRT explosion-proof belt, LED backlight, electrical cabinet, etc.
4.Agricultural use: pig house, chicken house, granary, greenhouse pipe, etc.
5.Others: heat insulation cover, heat exchanger, dryer, water heater, etc.
Application
