Cold Formed OZ Combi Walls Steel Sheet Pile
Cold Formed OZ Combi Walls Steel Sheet Pile
Feature
-
Cold formed OZ type steel sheet pile is a kind of ssaw pipe and z type steel sheet pile combi walls. Cold formed steel sheet piles’ process is: a steel billet is heated and rolled in the same manner as hot- rolled sheet pile, but instead of being shaped into the flat, U, or Z sheet pile sections while hot, the coils are left to cool. The hot-rolled coils are then run through a mill and shaped at room temperature into the final Z shape steel sheet pile.
1)Standard: EN10249
2)Type: O/Z combi walls
3)Technique: cold formed
4)Length: 12m, or as per customer’s requirement
5)Packing: standard sea-worthy packing
6)Service: painting, punching
|

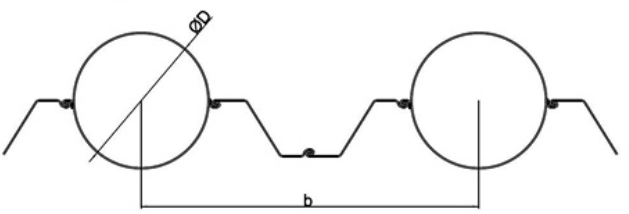

Type |
Width/b (mm) |
Sectional Area cm2/m |
Weight per wall (kg/m2) |
Moment of Inertia (cm4/m) |
Modulus of Section (cm3/m) |
| XLT0914-10/XLTZ18-630
|
2264
|
222.9
|
175
|
164739 |
3605
|
| XLTO914-12/XLTZ18-630 | 2264 |
247.1 |
194 |
190481 |
4168 |
| XLTO914-14/XLTZ18-630 | 2264 |
272.6 |
214 |
215686 |
4720 |
| XLTO1016-12/XLTZ18-630 | 2366 |
253.5 |
199 |
238297 |
4691 |
| XLTO1016-14/XLTZ18-630 | 2366 |
279.8 |
219.6 |
297133 |
5652 |
| XLTO1016-16/XLTZ18-630 | 2366 |
305.7 |
240 |
303879 |
5982 |
| XLTO1219-14/XLTZ18-630 | 2569 |
292.4 |
229.6 |
409971 |
6726 |
| XLTO1219-16/XLTZ18-630 | 2569 |
321.5 |
352.4 |
461962 |
7579 |
| XLTO1219-18/XLTZ18-630 | 2569 |
350.4 |
275.2 |
513335 |
8422 |
1)More readily available: Cold-Formed sheet piles are produced at higher quantities than hot-rolled sheet piles, increasing the number of rolling dates to choose from. Typical production time is 2 weeks
2)Cost-effective: Cold-Formed sheet pile is about 30-40% less expensive to produce than hot-rolled sheet pile
3)Less expensive to transport: Due to the larger number of cold- formed sheet pile manufacturers, there is a higher chance that you can find a mill located nearby than if you were to purchase hot- rolled sheet piles. Additionally, the larger selection of cold-formed sheet piles may allow you to find sections with a section modulus closer to your design specifications without a large increase in weight
4)More flexibility in positioning: Cold-formed sheet pile interlocks allow for a 25-degree rotation, rather than the 7-to-10-degree rotation allowed with hot-rolled sheet pile using ball-and-socket interlocks

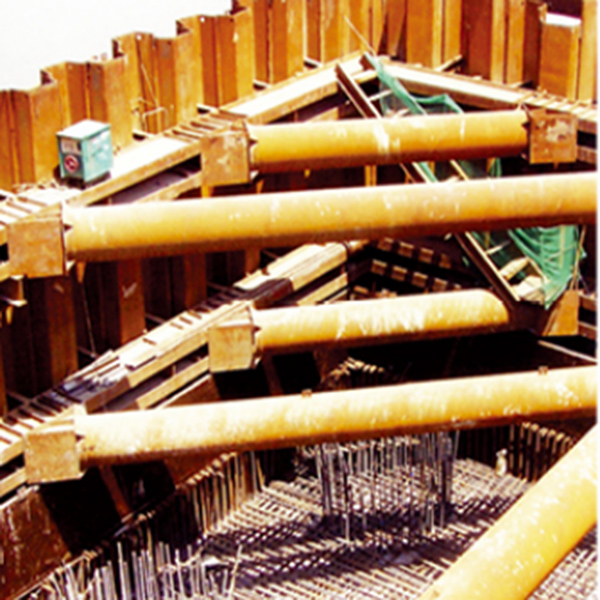

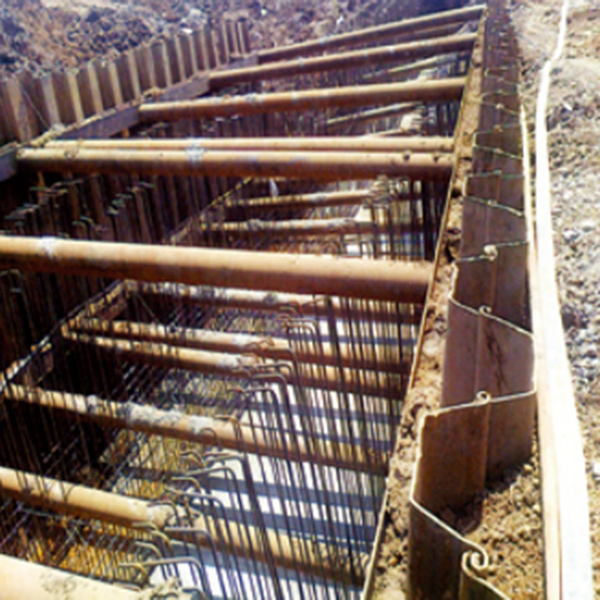

Cold formed O/Z steel sheet pile is widely use in flood project, construction project, wharf construction and so on. According to the actual situation of the project, the most economical and reasonable section can be selected to realize the optimization of engineering design.
