Cold Formed U-Type Steel Sheet Pile for Project Applications
Cold Formed U-Type Steel Sheet Pile for Project Applications
Feature
-
Cold Formed U Steel Sheet Pile is a cold-formed structural section manufactured under EN10249 by ZZ Group, designed to deliver reliable earth-retention and water-barrier performance for Sheet Piling Retaining Wall applications. Produced through a room-temperature shaping process, the U-type profile offers symmetrical geometry, reusable interlocks, and a lower cost position than hot-rolled alternatives, making it a practical choice for flood control, wharf, and general construction projects.
Cold formed U steel sheet pile is shaped from hot-rolled coils that are allowed to cool before being fed through a forming mill at room temperature, then rolled into the final U section. This production route, applied by experienced Steel Sheet Pile Manufacturers, gives the product stable dimensional accuracy and consistent mechanical properties across the section width.
Cold-formed U-type sheet pile is widely used as a sheet piling retaining wall in flood projects, construction projects, wharf construction, and similar infrastructure works. The U profile can be supplied in any length required for the project, while the section's symmetrical geometry and engineered interlocks support repeated reuse on site and predictable installation behavior in different ground conditions.
Among the common Steel Sheet Pile Types, cold-formed U sections are frequently specified where projects require a balance of structural performance and budget control. They sit alongside hot-rolled U sheet piles and other Types Of Steel Sheet Piles used in retaining, cofferdam, and cutoff-wall applications, and are typically quoted with competitive Steel Sheet Piling Prices due to the efficiency of the cold-forming route.
| Item | Specification |
|---|---|
| Place of Origin | Tianjin, China (Mainland) |
| Brand Name | ZHANZHI |
| Standard | EN10249 |
| Type | U type sheet pile |
| Technique | Cold formed |
| Length | Any Length |
● Cold-formed from hot-rolled coils at room temperature, producing a U-section that meets EN10249 requirements.
● Wide section width supports the mechanical properties of the section being fully used in service.
● Symmetrical structure is easy to reuse across multiple installation cycles.
● Cross-section design delivers a high "quality factor" for the material used.
● Installation is not restricted by weather conditions, supporting year-round site operations.
● Construction delivers obvious environmental benefits by reducing the volume of soil removed and concrete consumed, helping protect land resources.
● Green and environmental protection profile aligns with low-impact site practices.
● More readily available than hot-rolled sheet piles, with more frequent rolling dates to select from and a typical production time of around two weeks.
● Cost-effective route: cold-formed sheet pile is about 30-40% less expensive to produce than hot-rolled sheet pile.
● Less expensive to transport, with a larger number of cold-formed sheet pile manufacturers increasing the chance of finding a mill located close to the project site, and a wider size selection that may allow a section modulus closer to design needs without large weight increases.
● More flexibility in positioning, with cold-formed sheet pile interlocks allowing about a 25-degree rotation, compared with the 7-to-10-degree rotation typical of hot-rolled sheet pile using ball-and-socket interlocks.
● Flood control and riverbank protection projects requiring a continuous sheet piling retaining wall.
● Construction projects needing temporary or permanent earth retention around excavations and foundations.
● Wharf construction and quay wall reinforcement in port and harbor works.
● Cofferdam construction for bridge piers, intake structures, and other in-water works.
● Underground structure support, including basements, pump stations, and utility corridors.
● Slope stabilization along embankments, roadways, and channel banks.
● Land reclamation edges and shoreline cutoff walls where water ingress must be limited.
● Industrial site enclosures that require reusable retaining elements across phases.
A1: The cold-formed U steel sheet pile is produced in line with EN10249 and is manufactured under the ZHANZHI brand in Tianjin, China.
A2: Cold-formed U steel sheet pile can be supplied in any length required by the project, supporting both short-run retaining sections and long continuous walls.
A3: The cold-forming process is about 30-40% less expensive to produce than the hot-rolled route, which generally translates into more competitive Steel Sheet Piling Prices for buyers.

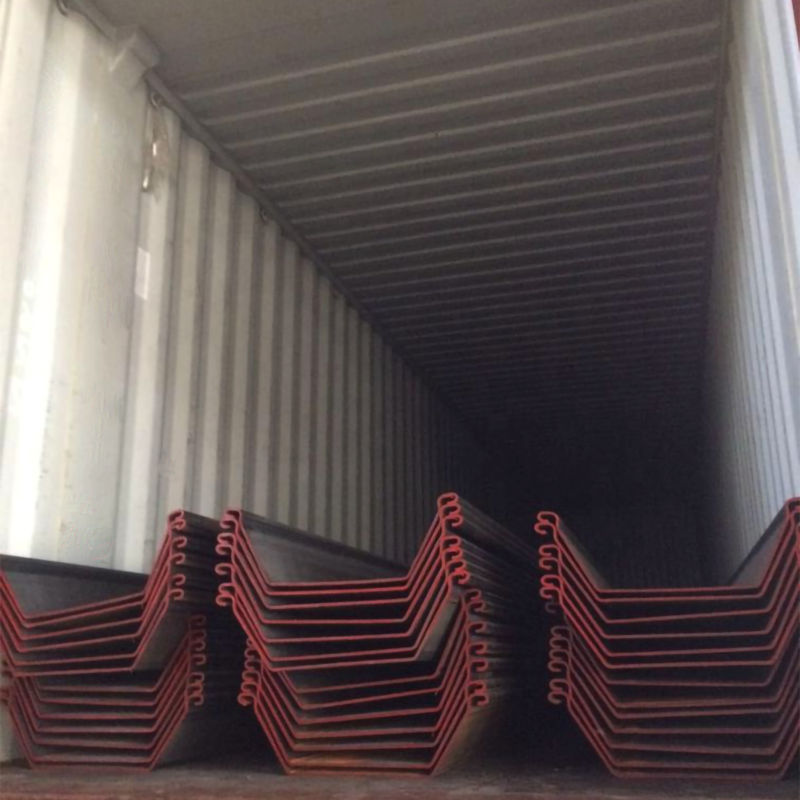

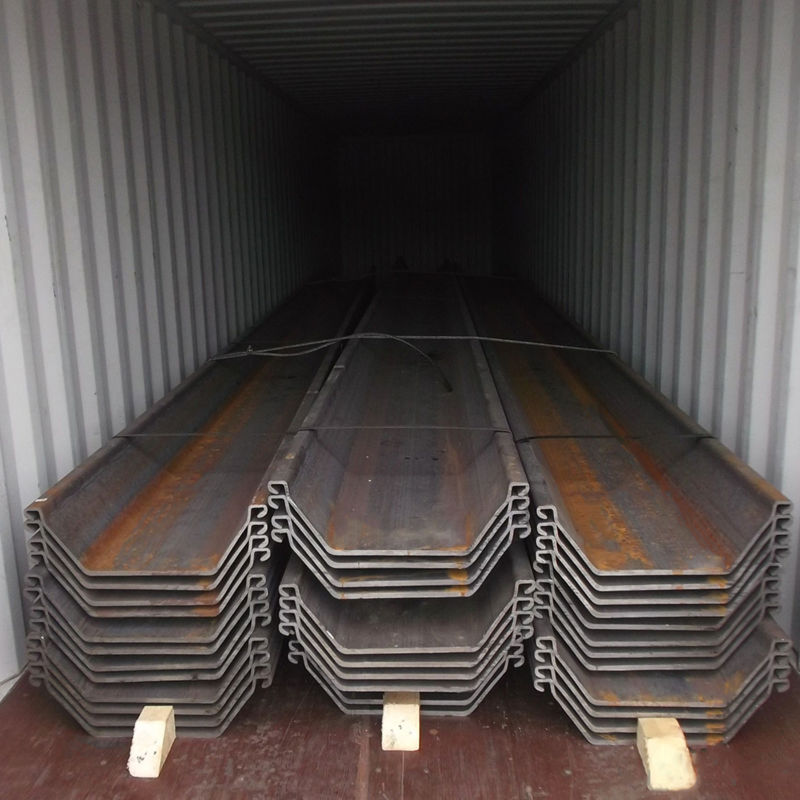

● Cold-formed U steel sheet piles are bundled and strapped to keep straightness and section integrity during handling.
● Standard export packaging is arranged to protect interlocks, edges, and cut ends from impact and weather during transit.

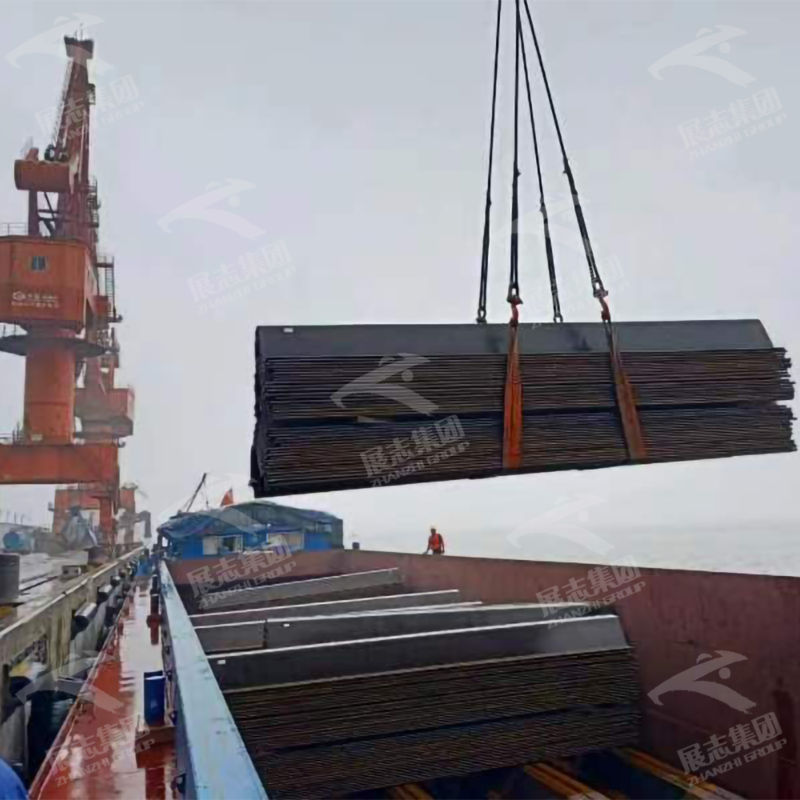

● Shipping can be coordinated by container, bulk vessel, or mixed shipment depending on length and project destination.
