Premium Cold Formed U Steel Sheet Pile for Retaining Wall Projects
Premium Cold Formed U Steel Sheet Pile for Retaining Wall Projects
Feature
-
Cold bending U sheet steel is a part of steel structure retaining product by the process of cold bending. The manufacturing process is as follows: The steel billet is heated and then hot rolled, just the same as that of hot rolled steel sheet piles; after hot rolling, the steel coil is not formed immediately into a U shaped section, but is allowed to cool naturally to room temperature first. The cooled steel coil is then fed to a cold forming machine and rolled at room temperature to the final U shaped section. By this processing, the product can have good mechanical properties and it can also drastically reduce the production cost and shorten the lead time. Among all forms of Steel Sheet Piles, the cold-formed U-shape Steel Sheet Pile Types Section due to its high economic and construction convenience has become the best solutions for global civil engineering projects.
| Place of Origin | Tianjin, China (Mainland) |
| Brand Name | ZHANZHI |
| Standard | EN10249 |
| Type | u type sheet pile |
| Technique | cold formed |
| Length | Any Length |
The geometry of the cold-formed U-shaped steel sheet piles is scientifically and reasonably designed, the flange and web thickness are uniform. The larger cross section width is to ensure the full play of the mechanical property, and reduce the number of the locking devices per meter of the wall, so as to facilitate the improvement of the water-stop performance of the wall and reduce the cost of the project. The symmetrical form of the design also means that it is well suited to repetition and is very cost effective.
1.High performance /price ratio:
The cost of production of cold-formed U-shaped steel sheet pile is nearly 30%- 40% less than that of hot-rolled steel sheet pile. The conventional production cycle is only 2 weeks and the supply efficiency is better. As a professional Steel Sheet Pile Manufacturers, Zhengzhi Group guarantees the price of Steel Sheet Piling to be competitive in the market for long time through scale production and strict management.
2.Great Construction Adaptability:
The Interlock system of cold-formed U-shaped steel sheet piles is up to 25 degrees when rotated, far more than the rotation angle of 7-10 degrees of ball type interlock system of hot-rolled steel sheet piles. It largely improve the correction performance and positioning flexibility in construction process particularly in Sheet Piling Retaining Wall, making it be better adapted to complex terrain, and curve road planning.
3.Green and Environmentally friendly：
The construction of steel sheet pile walls can greatly minimize the quantity of soil excavation and the quantity of concrete use which is good for the preservation of the land. This product can be use again and again and obey the environmental protection idea of sustainability construction.
4.Weather-Independent Construction：
The A Steel sheet piles can be worked with in all type of weather and keep the days on site.

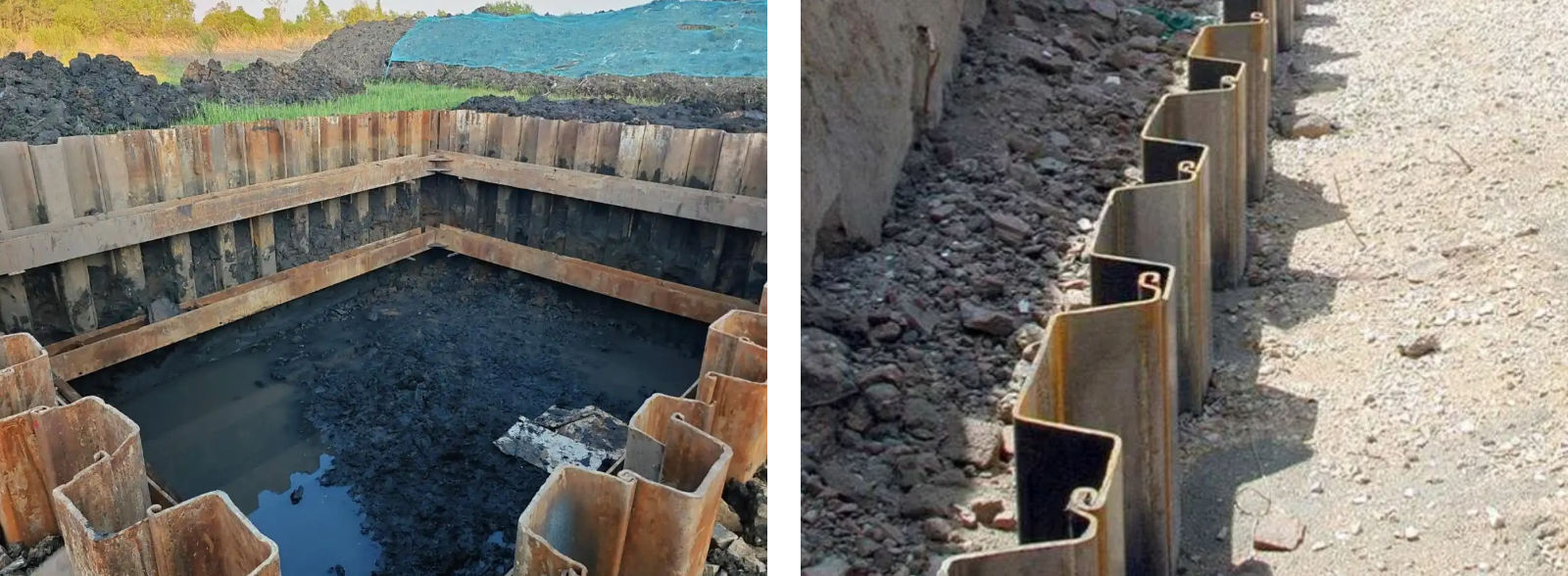

Cold formed steel U-piles have wide applications in civil engineering and water conservancy projects, and the performance of U-piled in Sheet Piling Retaining Wall project is very good.
| Flood Project | River embankment reinforcement, construction of flood control walls |
| Construction Project | Foundation pit support, underground structure enclosure |
| Wharf Construction | Beach revetment and retaining walls, temporary cofferdams |
| Temporary and permanent retaining walls | Small and medium-sized retaining structures, anchor walls |
| Water structure components | Ship docks, breakwaters, river bank protection slopes |
Based on various operating environment and loading demand, the engineer can choose the most appropriate profile from the many Types Of Steel Sheet Piles available. Zhizhi Group is able to offer professional selection advice.
Zhizhi Group perform the production of cold-formed U-shaped steel sheet pile according to EN10249 standard strictly. From the inspection of raw material hot rolled steel coils, dimensional accuracy control in cold forming processing to geometrical dimension verification of final locked devices, Every single process are under rigorous quality control. With the national processing and distribution network and professional quality management system, the group ensures that the cold-formed steel sheet piles products (cold-formed steel sheets & cold-formed steel coils) in each batch meets the international standard requirements.
Cold-formed U-shaped steel sheet piles are packed by steel bands, it is suitable for loading by different methods in shipping containers, such as 20-ft, 40-ft general containers and 40-ft high containers. Based on the geographical advantage of Tianjin Port and a whole set of domestic logistics network, ZZ Group could offer effective and stable transport and distribution services for customers at home and abroad.
ZZ Group is always in consistent with business tenet of “integrity, pragmatic, innovative, and win-win”, and customer oriented. It has the ambition to become the global leader in cold formed U-shaped steel sheet pile products and professional steel supply chain services to global civil engineering construction. For latest Steel Sheet Piling Prices or if you want to get more product manuals, please contact our sales team. ZZ Group ~ Your trusted Steel Sheet Pile Manufacturers, We are eagerly awaiting your visit for long term cooperation to create brilliance together!
